A Crosley Panda Survivor

Part II

Part II - Continued - Surviving Panda Prototype Documentation

The first Part of this Panda Series provided a brief overview of the Panda, its 3 models, and an introduction to the Surviving Panda (II) auto. Part II and the final of this series continues to present this vehicle as a single survivor of the Panda prototypes. Part II will highlight the striking similarities of the original Panda brochure (circa 1955) and profile current photos of the surviving Panda. In addition, Part II includes surviving Panda prototype photos noting critical manufacturing components of this car that substantiating its pre-production quality.

1955 Panda artist’s rendering sketch (From Ebay brochure find)

Prototype Panda Series II left profile

(Compare the top of door cut-out, bullet nose bumper, short tail fin,

rear wheel faux-skirt cut-out, vertical headlight/turn signal adaptation)

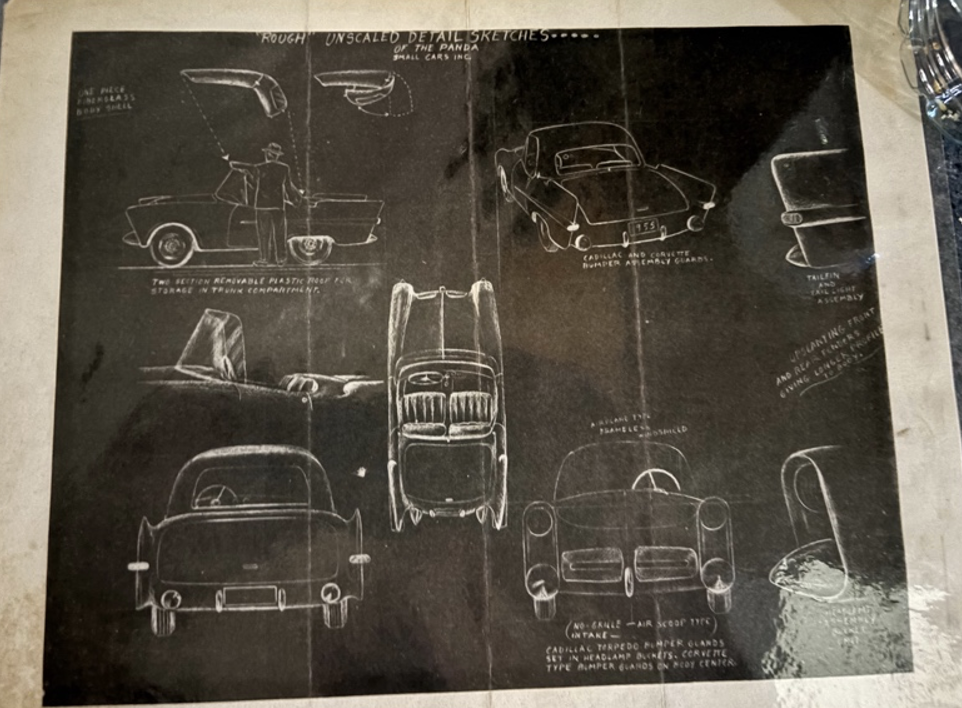

Additional early sketches from Panda brochure circa 1955

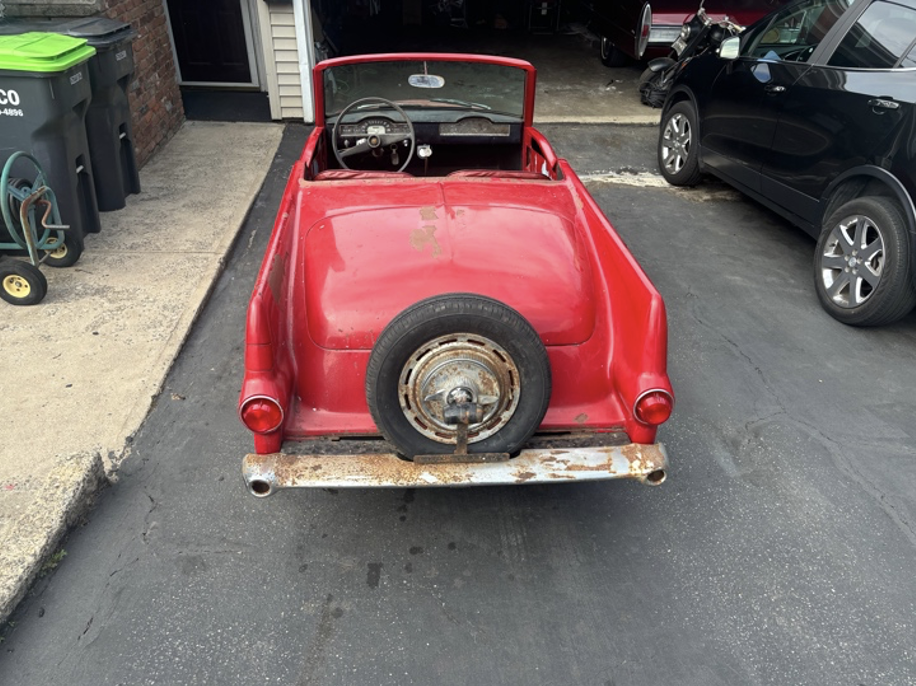

The Panda Series II’s rear profile is remarkably similar to the 1955 Panda renderings.

(Note: straight on view of rear – lower left - with fin proportions, flat bumper and small taillight locations.)

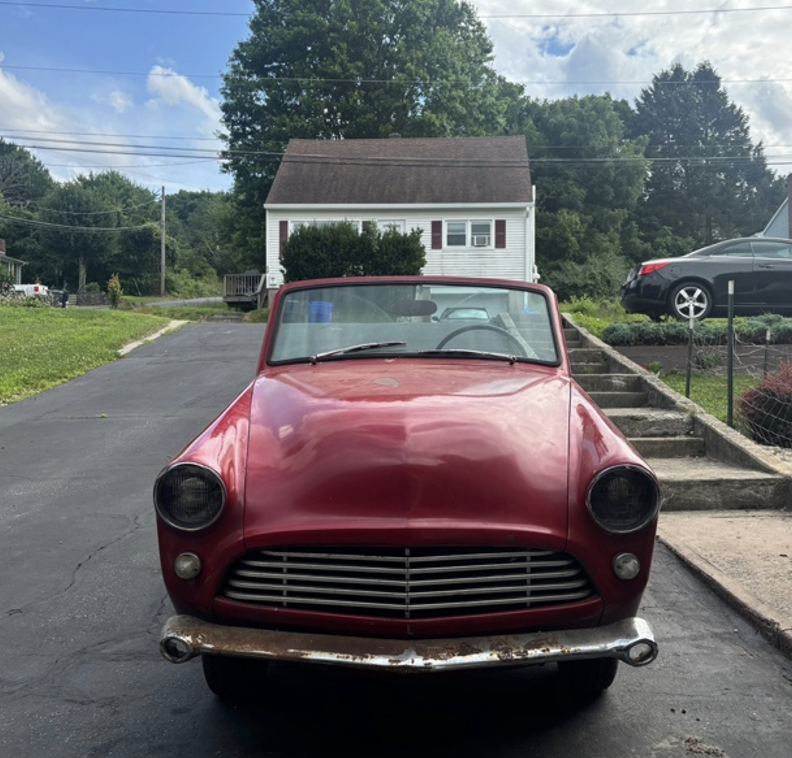

The Panda Series II’s front profile

(Although this Panda survivor does not follow the brochure’s front end renderings, the single glass windshield, hood flare downward toward headlights are still remarkably similar.)

In addition to the above documented comparisons, what follows are additional survivor car features that further supports this survivor’s Panda Series II pre-production status.

Fiberglass an Emerging Auto Technology

Panda’s were said to have been produced with fiberglass bodies. However, the appearance of fiberglass technology was new and very slow to emerge in the early 1950’s. In fact, the first Corvette prototypes were first considered to be made of steel. But after a successful debut, the favorable public response, and the need to get the cars to market quickly, fiberglass was used. In general in the early ‘50’s, steel was still the primary material used for automotive bodies due to its strength, durability, and long-term cost-effectiveness.

In this Panda Series II car’s case, as a prototype, the body was made of steel. (although contradicted in 70+ year old information) With no known Panda survivors and very little historical documentation, it is quite possible that early Panda Series I & II, were made of steel. The company soon went under and was unable to continue with the planned fiberglass body mass production.

The following information documents the substantial manufacturing investment in the development of this Panda prototype far beyond any “home project”.

The Trunk

When you open the trunk of the Panda survivor, there are drip rails. The interior of the trunk lid has a complete underside structure. In addition, the trunk is complete like a modern car, Wheel wells are present. There is also a divider between the trunk and the cabin with all the inner wells are seamed and go up to the rear of the car body. These detailed features are of a car ready for production

The “Surviving” Panda Series II’s complete trunk floor structure with stamping.

Other Protype Pre-Production Support Examples

The following are protype Panda photos further supporting the serious design, energy, and production materials used in preparing this Panda protype for the market.

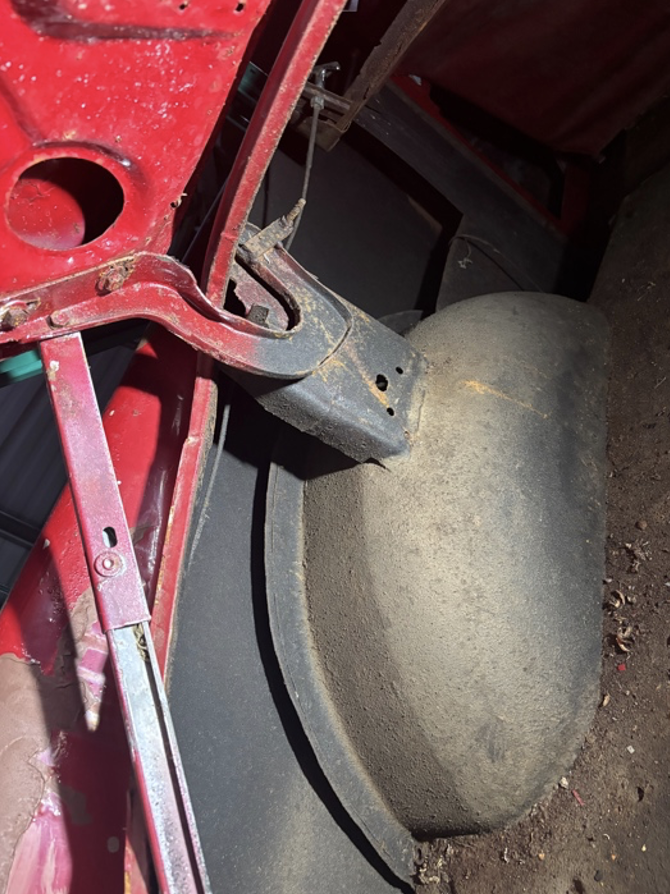

The “Surviving” Panda Series II’s trunk hinge and latch demonstrate a manufactured piece was used in it’s construction.

(Note the complex rear trunk hinge supported by the wheel well buckets with drip rails present. (Plus, the wheel well bucket has a separate backside to prevent road material from entering the trunk.)

Structural Design

The fender wells are present. The hood has hinges with springs to support an open hood. Plus, the hinges are far too complex to be homemade or made for a “one-off” production”. Plus, they have individual springs on both sides. This sophistication would likely not be present unless the hinges and the springs used were going to be used again in production. In addition, the fenders have to be removed to get at the hood hinges, far too complicated for a post-production modification.

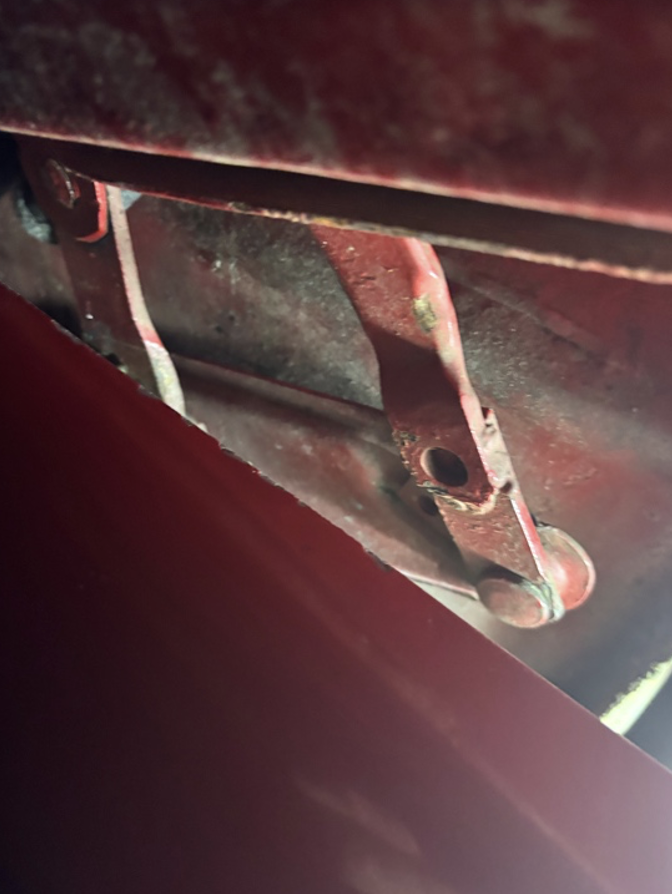

The Surviving Panda Series II’s hood hinge with springs

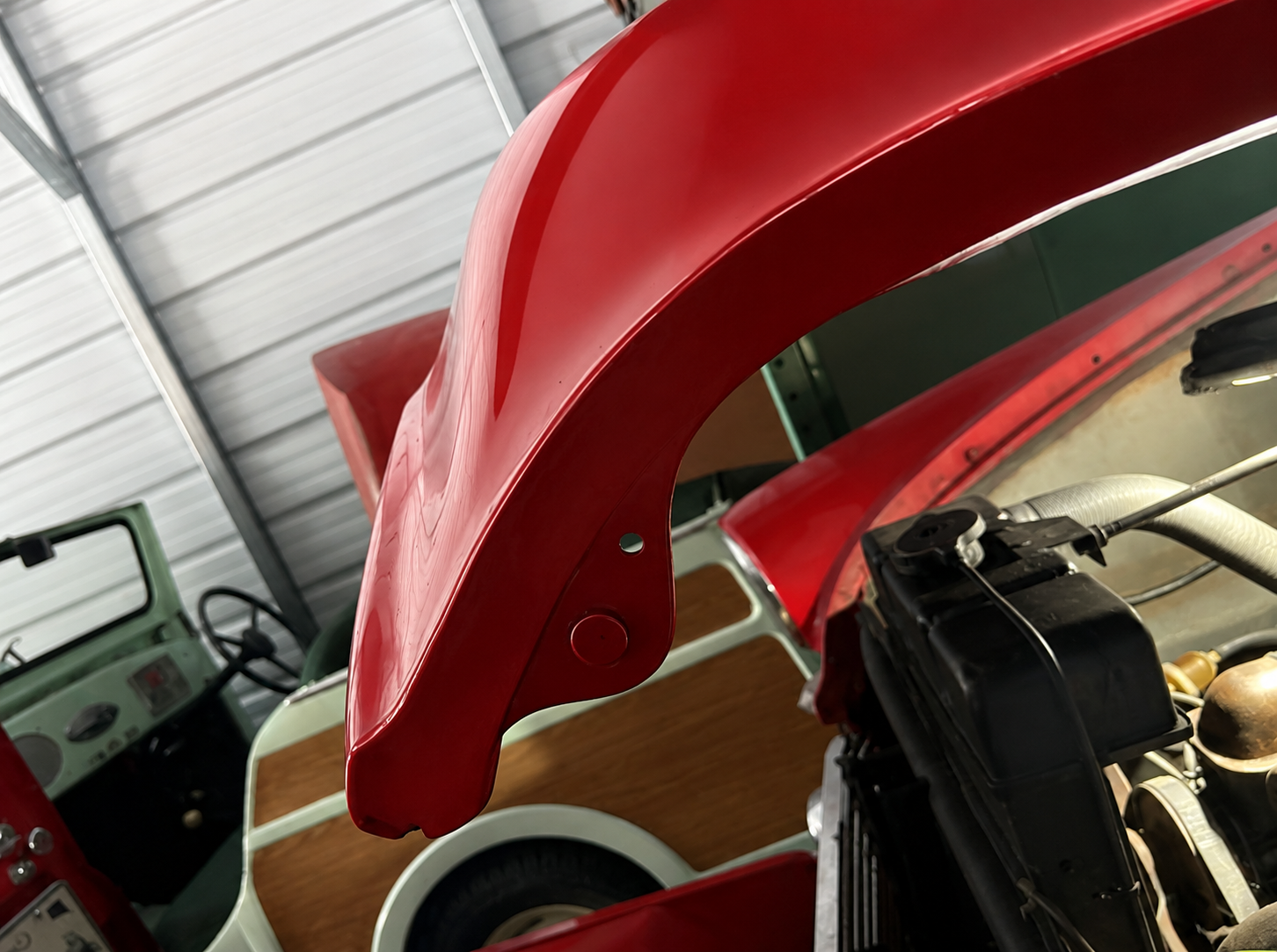

The “Surviving” Panda Series II’s hood. The hood is “formed” as a finished product like a stamped piece.

(Note the detail of the hood’s bottom side edge formed with rounded edges far too complex for a “kit car”

The “Surviving” Panda Series II’s…

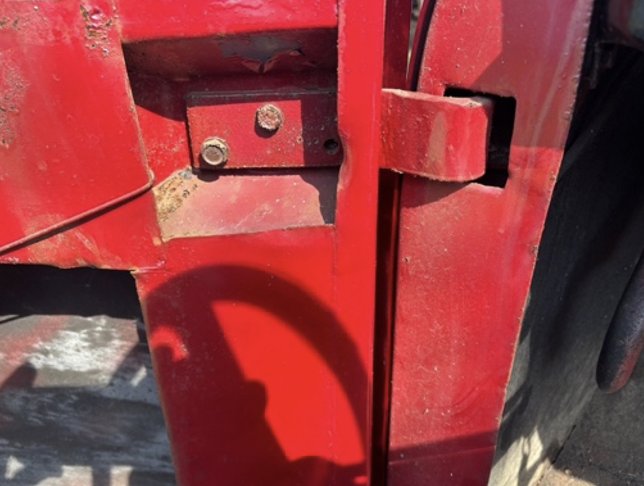

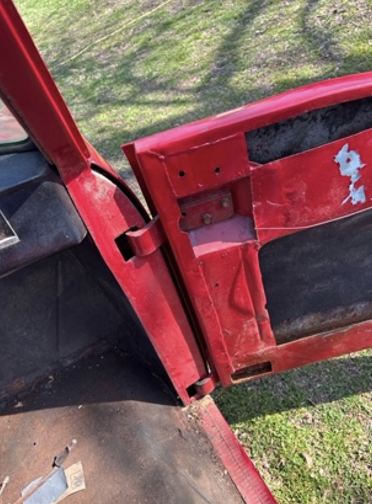

Note the detail of the “hidden” door hinges claimed to be a part of the next series Panda protypes.

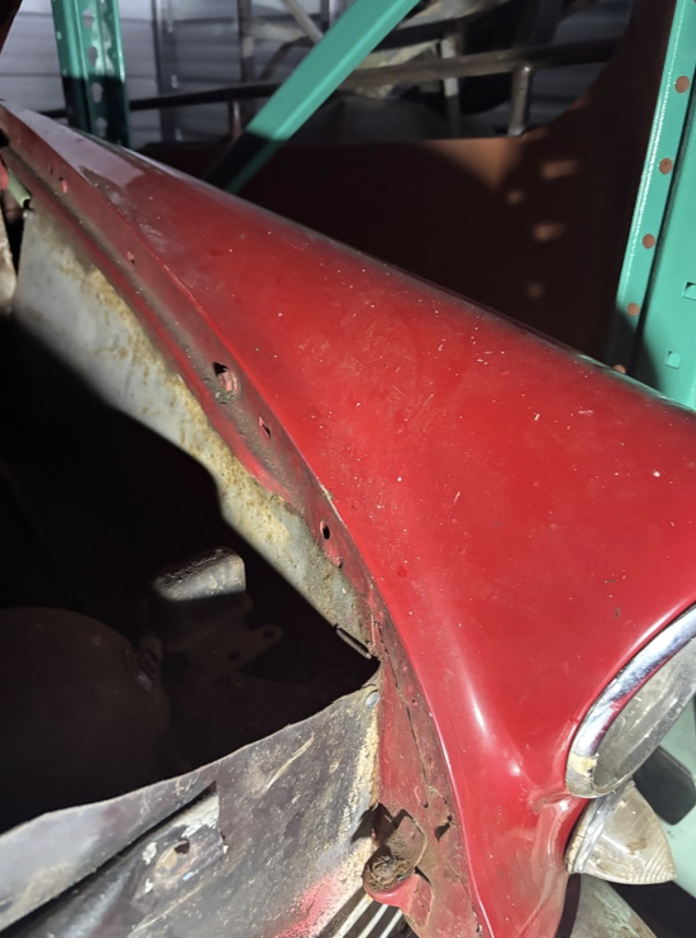

The “Surviving” Panda Series II’s fender This is a stamped fender.It supports “gearing up” for manufacturing.

Exterior

The headlight rings are cast, made of pop metal to fit the contours of the finders. They are not a universal ring and were made specifically for this vehicle. The bumpers were apparently also made specifically for this car with bullets on each end tailored to accommodate the width of this vehicle. On the underside, there is a splash pan behind the car to hide the gas tank – clearly a feature of a future production car.

Electrical

The Panda’s wiring is derived from an original, “custom” harness. It is wrapped and woven and has a correct junction box. A professional body man would not be capable of using woven wire for a “post-production” cover wiring harness. The preciseness of the production suggests it was designed for longer-term production applications.

Finally, although informal comments, several colleagues with extensive automotive experience, a body shop owner, a professional in historic restorations, and a hot rod builder noted that this car was not a simple “backyard assembly project” because of the preciseness of construction, the production symmetry (rightside/leftside) and the general overall quality of the “craftmanship”.

There is an insufficient documented history of the demise of the Panda resulting in the absence of a complete history of the auto. The resulting historical vacuum invites numerous dismissive disclaimers about any survivors and their authenticity. This 2-Part Series sought to “connect the dots’ on Panda’s history; fill in obvious survivor information gaps; and position this prototype Panda Series II as perhaps the last single surviving example of an innovative early American sports car.

References

Automotive News. (1955, March 7).

Consumer Guide Editors. (2002). Encyclopedia of American Cars. Publications International.

Standard Catalogue of American Cars, Volume 3: 1946–1975. Page numbers for Panda automobiles, 1955–1956.

Original Panda brochure (c. 1955). Owner's collection.

Cunningham, R. D. (n.d.). Crosley Powered Roadster Proposal Resulted in “Panda”. Undiscovered Classics.
